CB2D 齿轮泵
简介
CB2D齿轮泵系高压小排量齿轮油泵，由一对高强度齿轮、轴套、泵体、前盖、后盖等主要部件组成，轴向间隙由高精度浮动轴套自动补偿，使得CB2D齿轮泵具有高的机械效率和容积效率，该泵噪音低、可靠性高，低的重量/功率比，该泵具有顺时针，逆时针两种旋向。
|

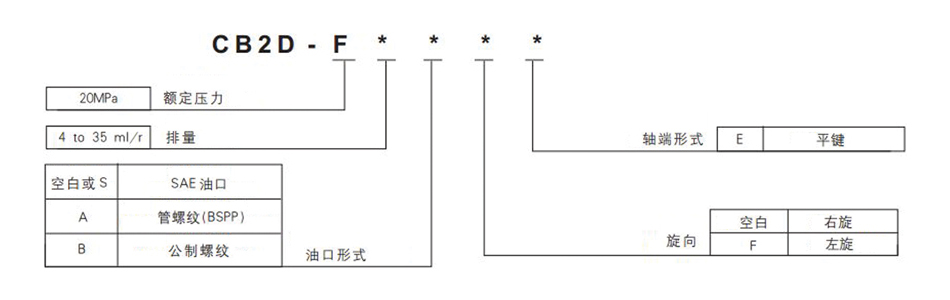

型号 |
排量 |
压力 |
转速 |

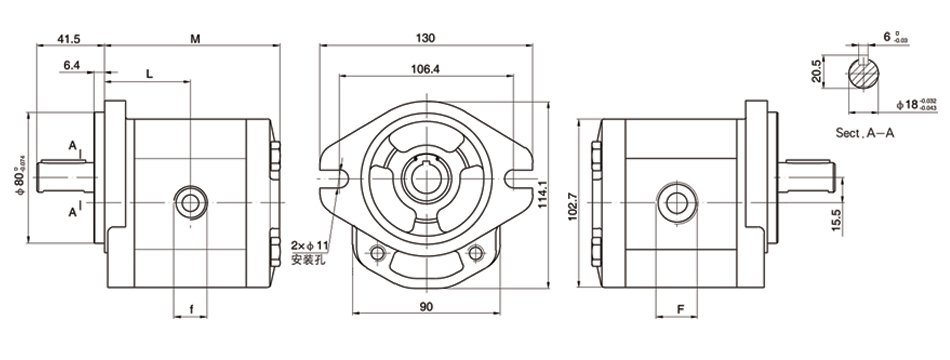

尺寸 | ||||||
|
PI |
P2 |
P3 |
额定 |
最高 |
L |
M |
F进油口 |
f出油口 | ||
|
mL/r(in3/r) |
MPa |
MPa |
MPa |
RPM |
RPM |
mm |
mm | |||
|
CB2D-F4 *** |
4.47 (0.273) |
20 |
25 |
28 |
2000 |
4000 |
45.6 |
93.2 |
SAE 口 BSPP 口 公制口 |
SAE 口 BSPP 口 公制口 |
|
CB2D-F6 *** |
6.37 (0.389) |
47.1 |
96.3 | |||||||
|
CB2D-F7 *** |
7.04 (0.428) |
47.7 |
97.4 | |||||||
|
CB2D-F9 *** |
9.55 (0.584) |
49.6 |
101.3 | |||||||
|
CB2D-F11 *** |
11.49 (0.701) |
51.3 |
104.6 | |||||||
|
CB2D-F14 *** |
14.04 (0.857) |
1500 |
3200 |
53.4 |
108.9 | |||||
|
CB2D-F15 *** |
15.92 (0.973) |
2800 |
54.9 |
111.9 | ||||||
|
CB2D-F17 *** |
17.76 (1.090) |
2500 |
56.4 |
114.9 | ||||||
|
CB2D-F21 *** |
21.07 (1.285) |
18 |
20 |
22 |
2200 |
59.1 |
120.3 | |||
|
CB2D-F23 *** |
23.27 (1.441) |
2000 |
60.9 |
123.9 | ||||||
|
CB2D-F28 *** |
28.07 (1.713) |
15 |
17 |
19 |
1800 |
64 |
131.7 |
15/16-12UN |
11/16-12UN | |
|
CB2D-F32 *** |
32.02 (1.954) |
68.1 |
138.2 | |||||||
|
CB2D-F35 *** |
35.08 (2.141) |
70.6 |
143.2 | |||||||
