Group2 European Style Gear Pumps
General Description
The CB2E gear pump consists of a gear pair supported by two aluminum bearing blocks, a housing, front cover and rear cover. The axial clearance can be automatically compensated by the bearing blocks. The CB2E pump features simple structure, high mechanical and volumetric efficiency, low noise, high reliability, as well as low weight/power ratio. Both CW and CCW directions pumps are available.

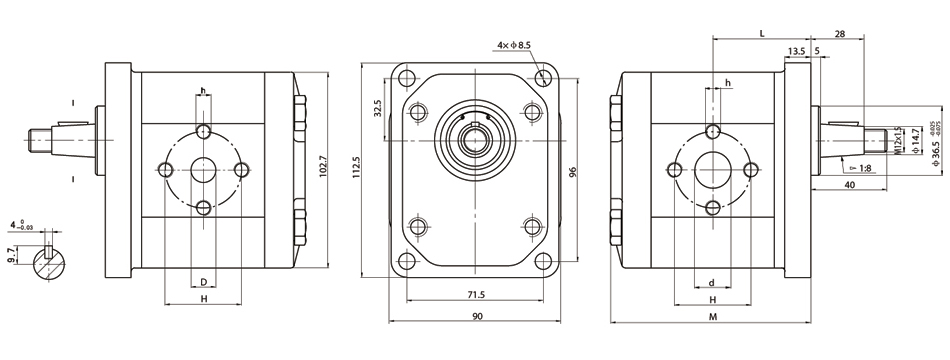

Outline Dimension
|
Model |
Displacement |
pressure(MPa) |
Speed(RPM) |
BSPP |
Dimension | |||||||||
|
PI |
P2 |
P3 |
Rated |
Max |
Intel |
Outlet |
L |
M |
d |
D |
h |
H | ||
|
CB2E-F4*** |
4.47 (0.2728) |
20 |
25 |
28 |
2000 |
4000 |
G3/4" |
Gl/2" |
45.65 |
93.3 |
13 |
13 |
M6 |
30 |
|
CB2E-F6*** |
6.37 (0.3887) |
47.15 |
96.4 |
13 |
13 |
M6 |
30 | |||||||
|
CB2E-F7*** |
7.01 (0.4278) |
47.75 |
97.5 |
13 |
13 |
M6 |
30 | |||||||
|
CB2E-F9*** |
9.57 (0.5840) |
49.65 |
101.4 |
13 |
13 |
M6 |
30 | |||||||
|
CB2E-F11*** |
11.49 (0.7012) |
51.35 |
104.7 |
19 |
13 |
M8 |
40 | |||||||
|
CB2E-F14*** |
14.04 (0.8568) |
1500 |
3200 |
53.45 |
109 |
19 |
13 |
M8 |
40 | |||||
|
CB2E-F15*** |
15.94 (0.9727) |
2800 |
54.95 |
112 |
19 |
13 |
M8 |
40 | ||||||
|
CB2E-F17*** |
17.76 (1.0900) |
2500 |
56.45 |
115 |
19 |
13 |
M8 |
40 | ||||||
|
CB2E-F21*** |
21.06 (1.2852) |
18 |
20 |
22 |
2200 |
59.15 |
120.4 |
19 |
19 |
M8 |
40 | |||
|
CB2E-F23*** |
23.61 (1.4408) |
2000 |
60.95 |
124 |
19 |
19 |
M8 |
40 | ||||||
|
CB2E-F28*** |
28.07 (1.7129) |
13 |
15 |
17 |
1800 |
Gl" |
G3/4" |
64.05 |
130.2 |
19 |
19 |
M8 |
40 | |
|
CB2E-F35*** |
35.08 (2.1407) |
70.65 |
143.3 |
21 |
19 |
M8 |
40 | |||||||
