Bi-Directional Cartridge Solenoid Valve
Normally-Closed, Two-Way, Two-Position, Bi-Directional Cartridge Solenoid Valve

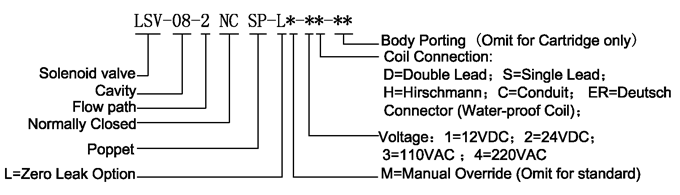

Order Code
Symbol

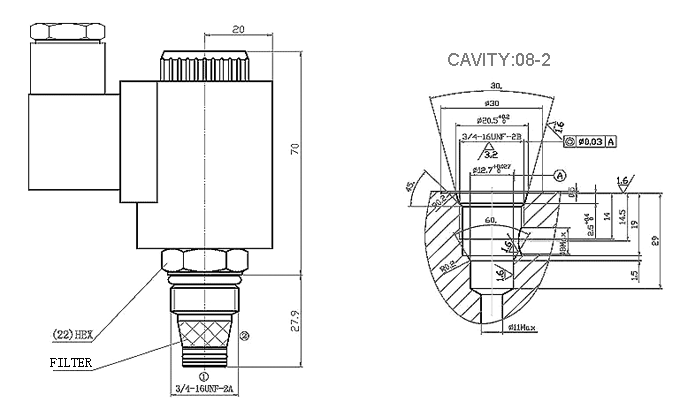

Outline Dimension
Operation
When de-energized, the Valve blocks flow in both directions.
When energized, the poppet shifts to allow flow in either direction.
Technical Data
Operating Pressure：25MPa
Flow： 18L/Min
Temperature： -35℃to +120℃
Internal Leakage： Zero drops/min
Filter： 150um（Effective from ② to ① only）
Cavity： 08-2
